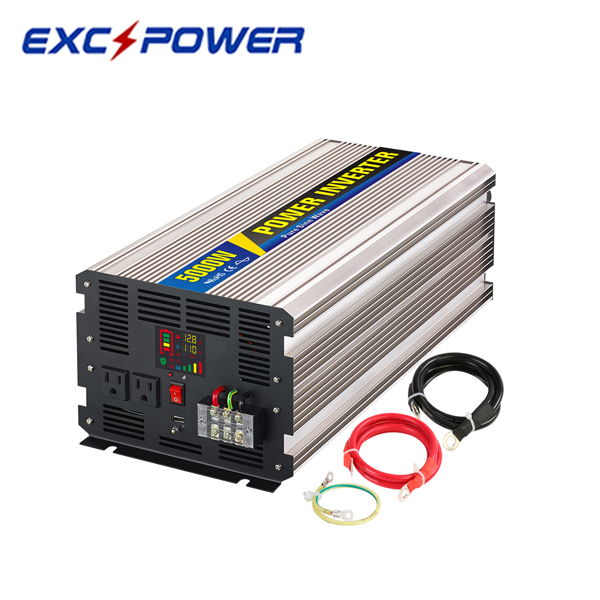

5000W Pure Sine Ware Inverter with LED Digital Display

rated power

5000W

Peak power

10000W (short time)

Input voltage

12VDC

24VDC

48VDC

The output voltage

110VAC±5%

220VAC±5%

110VAC±5%

220VAC±5%

110VAC±5%

220VAC±5%

USB port

5V 1A

frequency

50Hz±3 or 60Hz±3

Output waveform

Pure sine wave

Soft start

YES

Total harmonic distortion

THD<3% (Linear Load)

effectiveness

94% max

No-load current

0.6A

0.3A

0.1A

DC input range

10-15.5V

20-31V

40-61V

Input undervoltage alarm

10.5±0.5V

21±0.5V

42±1V

Input undervoltage protection

10±0.5V

20±0.5V

40±1V

Input undervoltage recovery

13±0.5V

24±0.5V

48±1V

Input overvoltage protection

15.5±0.5V

31±0.5V

61±1V

Input overvoltage recovery

14.8V±0.5V

29V±0.5V

59V±1V

Cooling method

Smart fan

Display mode

E series color display

Protective function

Undervoltage protection, overvoltage protection, overload protection, overtemperature protection, short circuit protection

Operating temperature

-10 ° C - +50 ° C

Product Size

48*21.6*15.6cm (L×W×H)

Carton size

63.5*30.8*24cm/1 only

Net weight / only

12kg

Gross weight/box

14.1KGS

Packing

Kraft packaging

Warranty

2  years
